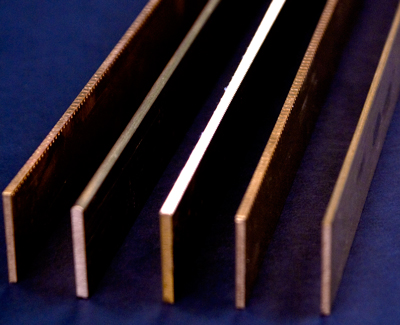

Brass Rule for High Frequency Welding,
made in England by Stephenson & Blake limited's Sheffield foundry.
Stephenson & Blake only use brass which is most suitable for forming whilst giving minimal height distortion during the bending process. Whilst there are cheaper materials available, their philosophy of using the highest grades available to give the best results, have seen the company acknowledged as a quality supplier.
All Stephenson & Blake rules are produced to the standard 26” length (660mm).
Stock Listing
TEAR SEAL:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 201 (551) | 4pt. - 1.50mm (.059") | Plain / small bead | .924/.918" to .950/.935" |
| 206 (501) | 6pt. - 2.25mm (.089") | Plain / small bead | .932/.918" to .945/.950" |
| 386 (503) | 6pt. - 2.25mm (.089") | Stitch | .932/.918" |
TEAR RULE:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 10 (3) | 2pt. - 0.70mm (.0275") | Centre tear | .918 to .950 |
| 75 (13) | 2pt. - 0.70mm (.0275") | Side tear | .918 to .950 |
DOME FACE:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 947 (528) | 2pt. - 0.70mm (.0275") | Dome face bar | .917/.945" |
| 951 (529) | 3pt. - 1.0mm (.039") | Dome face bar | .918/.935" |
| 955 (561) | 4pt. - 1.5mm (.059") | Dome face bar | .918/.935" |
| 962 (530) | 6pt. - 2.25mm (.089") | Dome face bar | .918/.935" |
| 970 (596) | 8pt. - 3.0mm (.118") | Dome face bar | .918/.935" |
STITCH WELD - 10 teeth per inch:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 7497 (6702) | 2pt. - 0.70mm (.0275") | Plain stitch-dome face | .918/.935" |
| 7500 (6703) | 3pt. - 1.0mm (.039") | Plain stitch-dome face | .918/.935" |
| 7505 (6704) | 4pt. - 1.5mm (.059") | Plain stitch-dome face | .918/.935" |
| 7512 (6706) | 6pt. - 2.25mm (.089") | Plain stitch-dome face | .918/.935" |
| 7520 (6708) | 8pt. - 3.0mm (.118") | Plain stitch-dome face | .918" |
STITCH WELD - 12 teeth per inch:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 7297 (6712) | 2pt. - 0.70mm (.0275") | Plain stitch-dome face | .918/.935" |
| 7300 (3713) | 3pt. - 1.0mm (.039") | Plain stitch-dome face | .918" |
STITCH WELD - 24 teeth per inch:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 2535 (6722) | 2pt. - 0.7mm (.0275") | Flat stitch | .918/.935" |
| 2540 (6723) | 3pt. - 1.0mm (.039") | Flat stitch | .918/.935" |
| 2545 (6724) | 4pt. - 1.5mm (.059") | Flat stitch | .918/.935" |
| 2550 (6726) | 6pt. - 2.25mm (.089") | Flat stitch | .918/.928/.935" |
| 2555 (6728) | 8pt. - 3.0mm (.118") | Flat stitch | .918/.935" |
| 2560 (6721) | 12pt. - 4.0mm (.157") | Flat stitch | .918/.935" |
ORNAMENTAL & FANCY:
| Part No. | Thickness | Description | Height |
|---|---|---|---|
| 681 (567) | 4pt. - 1.5mm (.059") | Feather edge | .924/.918 .932/.925 |
Special profile rules and sizes upon request
